DIY Arduino CNC [Updated]


Assalam-o-Allaikum  all hope you are doing good. I'm here with another very cool project which you can build using some scrap/used parts of the Printers.

Introduction :

In this Article I'm going to show you how you can make a Arduino CNC Machine at home from Scrap of the Old Printers  by using this CNC machine you can Etch Pcb's , can engrave several types of materials like plastic, wood etc.

Components Used To Make This Thing!
1- Stepper Motors Nema 17 - 3x
2-Arduino Uno/Genuino - 1x
3- Limit Switches - 6x
4- CNC Shield V3 - 1x
5- LV-390 12 volt Dc Motor - 1x
6- Linear Rails - 3x
7- Jumper Wires - 20x
8- 12 volts 3-5 Amps Power Supply - 1x

9- Engraving Bits

10-A Lot Of Patience ! :D

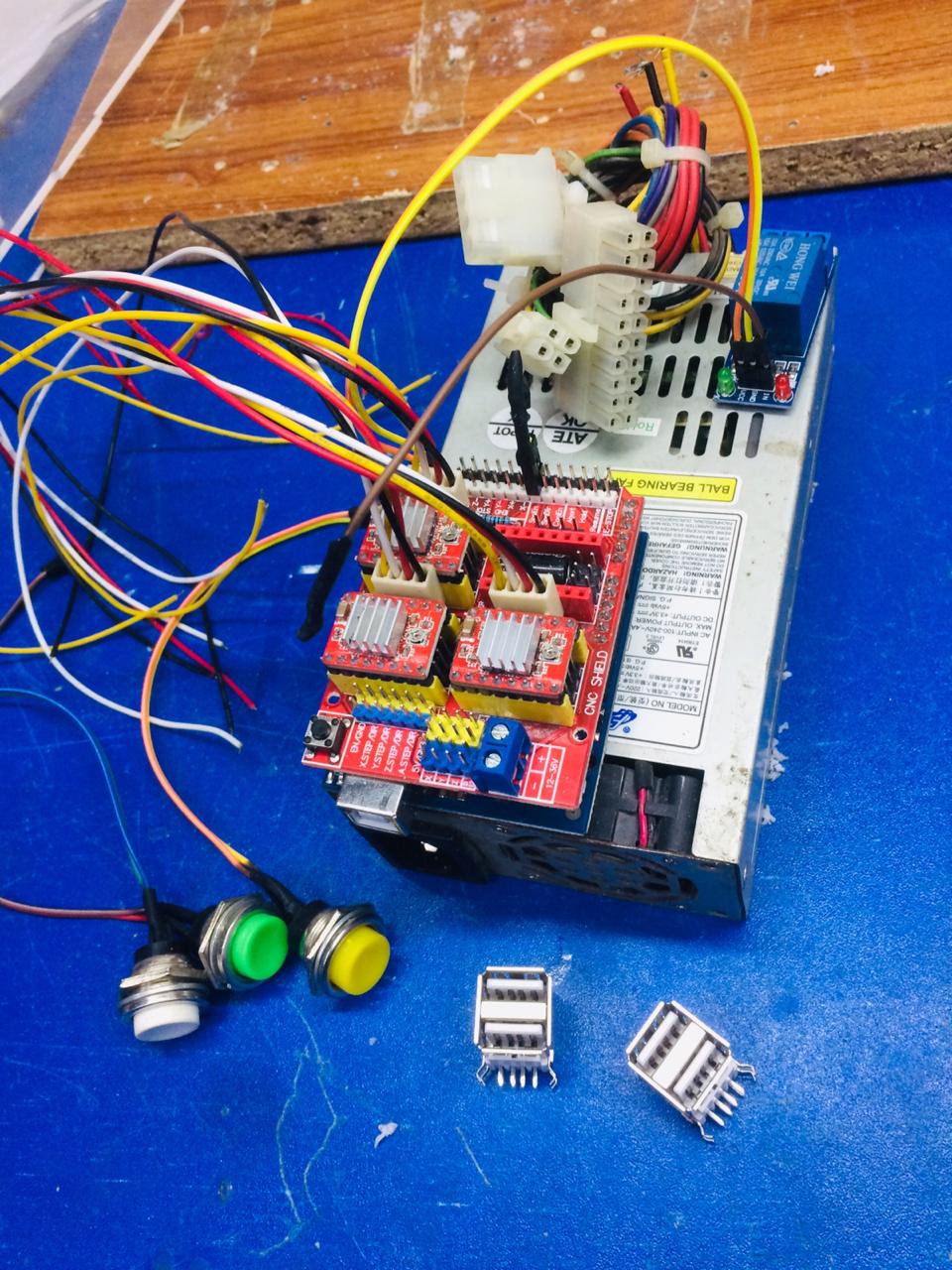

Making Of Custom Power And Controlling Unit :

Materials Used

 1- Acrylic Sheet

 2- Arduino Uno

 3- CNC shield

 4- A4988 drivers

 5- Jumper wires

 6- Relay module

 7- USB ports












The computer power supply and some other materials which we can use for the Contrlling Unit.

Putting Things Together!








Notice:
1. Spindle with cutters mainly used for engraving: Wood,Plastic,PCB,Acrylic,Pvc, Plywood,etc.
2. Laser engraving for: Wood,Plastic,Leather,Bone,Stone,Paper,Shell,etc.(Can't engrave metal)
3.Be careful while operating this!

That's It!
Hope You Guys Enjoyed It
Do Comment Below If You Have Any Question Regarding to This Machine!
